Magic Bar Qualifier Dashboard

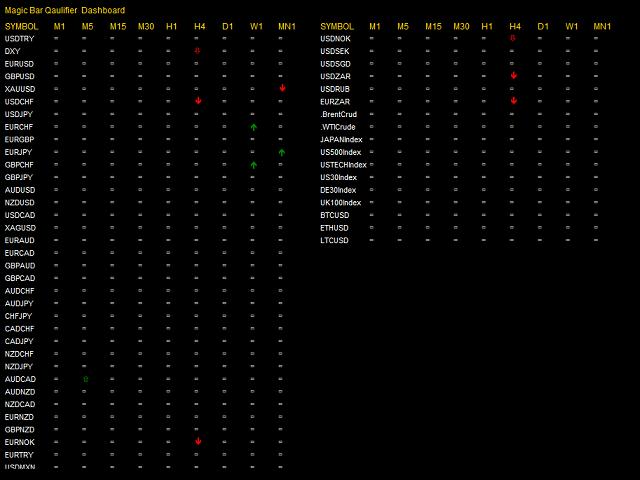

The indicator scans for signals in multiple timeframes for the all markets filtered and shows the results on Dashboard.

Key Features

• Dashboard can be used for all markets
• It can scan for signals on MN1, W1, D1, H4, H1, M30, M15 ,M5, M1 timeframes

The indicator consists of two components. Ninth Bar is the first one and it is a prerequisite for the Thirteenth Bar - the second component.

Ninth Bar Signal

The indicator compares the current close with the corresponding close four bars earlier. There must be nine consecutive closes higher/lower than the close four bars earlier.

1. Ninth Bar Buy (Sell inverse)

• Prerequisite is a bearish price flip, which indicates a switch from positive to negative momentum.
• After a bearish price flip, there must be nine consecutive closes, each one less than the corresponding close four bars earlier.
• Cancellation - If at any point a bar closes higher than the close four bars earlier then it is canceled and we are waiting for another price flip
• Excellence - the low of bars eight or nine should be lower than the low of bar six and bar seven (if not satisfied expect new low/retest of the low).

Thirteenth Bar Signal

After a ninth bar signal is given counting for thirteenth bar can begin from bar nine.

Thirteenth Bar compares the current close with the low/high two bars earlier and you count thirteen bars. Unlike the ninth bar signals, If it is interrupted you just do not count the bars and when it resumes you continue counting further.

1. Thirteenth Bar Buy Signal (Sell Inverse)

Starts after the Ninth Bar signal. The close of bar nine should be less than the low two bars earlier. If satisfied bar nine becomes bar 1 of Thirteenth Bar signal. If the condition is not met than bar 1 is postponed until the conditions is satisfied and you continue to count until there are a total of thirteen closes, each one less than, or equal to, the low two bars earlier.

• Thirteenth bar qualifier
• The low of bar thirteen must be less than, or equal to, the close of bar eight.
• Cancellation
• A sell ninth bar signal appears. The price has rallied in the opposite direction and the market dynamic has changed.
• Close above the highest high for the current thirteenth bar buy.
• Recycle occurs (new Setting in the same direction and recycle activated)

Aggressive Thirteenth - the difference is the Thirteenth bar signal phase. You compare high/low (not the close ) with the high/low two price bars earlier.

Aggressive feature always produces buy and sell signals before normal does.

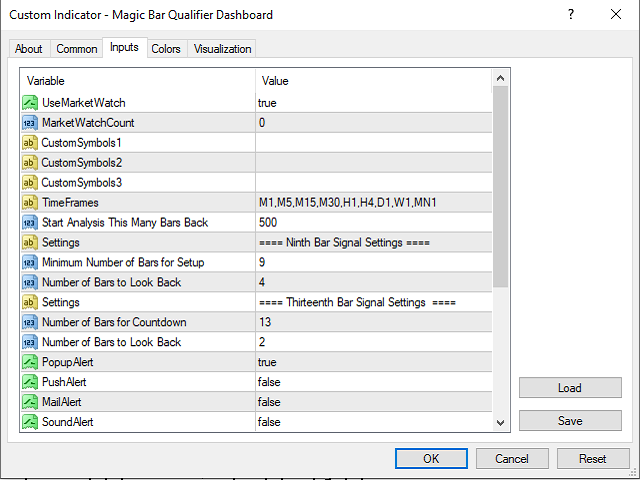

Parameters

• UseMarketWatch: Set true to copy all symbols available in market watch
• MarketWatchCount : Set the number of symbols that you want to copy from the market watch list.
• CustomSymbols: Enter the custom symbols that you want to be available in dashboard.
• Timeframes: Set the timeframes for dashboard.

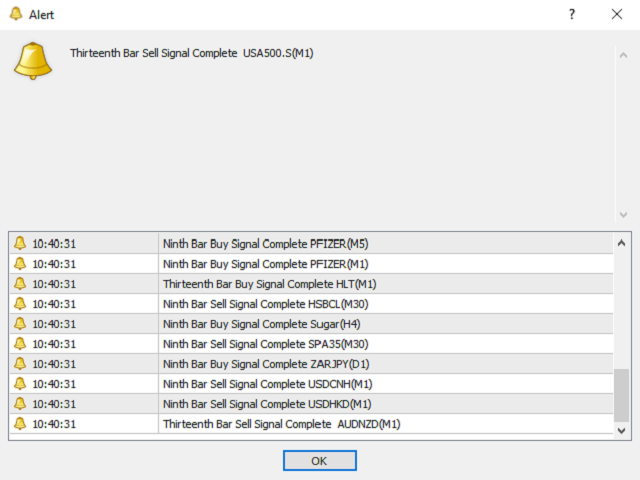

• Popup alert: Set True to enable window popup and sound alert on the terminal when a fresh signal is generated. Set False to disable
• Email alert: Set True to receive email notifications when a fresh signal is generated. Set False to disable.
• Push alert: Set True to receive push notifications on your Apple or Android devices when a fresh signal is generated. Set False to disable
